Room Correction Software: A Game-Changer for Music Producers
I remember the first time I tried to mix a track in my tiny bedroom studio 20 years ago. My Studio Monitors were placed totally wrong; it was a disaster. The bass sounded boomy in one corner but disappeared in another.
I couldn't figure out why my mix sounded great on my monitors but fell apart everywhere else when played on other playback systems.
Judging Sound in your room is a common issue these days. Many music producers believe that if a song sounds good on their studio monitors, it will sound good everywhere. However, after working with over 1000 artists for years, I am certain that many of them cannot accurately judge sound quality and are often unaware of this.
It took me years to correct errors that negatively impacted my music production. This included optimizing the room acoustics, finding a good audio interface, and, most importantly, starting to use room correction software 8 years ago. This changed everything for me.
Why Small Rooms Suck for Mixing
Here's the deal: small rooms are a nightmare for low frequencies. They create standing waves and resonances that mess with your perception of the mix. You might think you've nailed that kick drum, but your room is actually lying to you.
The smaller the room, the bigger the problem. Most of us don't have the luxury of a professionally treated studio. We work in bedrooms, basements, and spare rooms, which weren't designed for critical listening.
Common Mixing Challenges Without Room Correction
Inconsistent Bass Response
You move your head a few inches, and suddenly, the bass vanishes—or, worse, it's overpowering. This makes it nearly impossible to balance the low-end properly.
Muddy Midrange
Room reflections can cause certain frequencies to build up, making your mix sound boxy or unclear. You might overcompensate by cutting too much, leaving your tracks thin and lifeless.
Harshness in the High-End
Untreated rooms often have issues with early reflections. This can lead to an exaggerated high-end, causing you to mix too dark.
Poor Stereo Imaging
Room imbalances can throw off your perception of the stereo field, and your carefully crafted panning decisions might not translate to other systems.
Fatigue and Frustration
Constantly second-guessing yourself is exhausting. You might find yourself taking frequent breaks or giving up on sessions entirely.
Enter Room Correction Software
Room correction software acts like a pair of prescription glasses for your ears. It measures your room's acoustic response and applies a corrective EQ curve to your monitors. The result? A flatter, more accurate listening environment.
How does Room Correction work?
Time-domain alignment: uses phase-based alignment to ensure that different frequencies arrive at your listening position simultaneously. This helps to create a more focused and precise sound.
Frequency response: describes how a system, such as a speaker or headphone, responds to different frequencies. Nonlinear frequency response can lead to distorted or unbalanced sound. Correcting frequency response anomalies can significantly impact overall sound quality.
Let's compare some popular options:

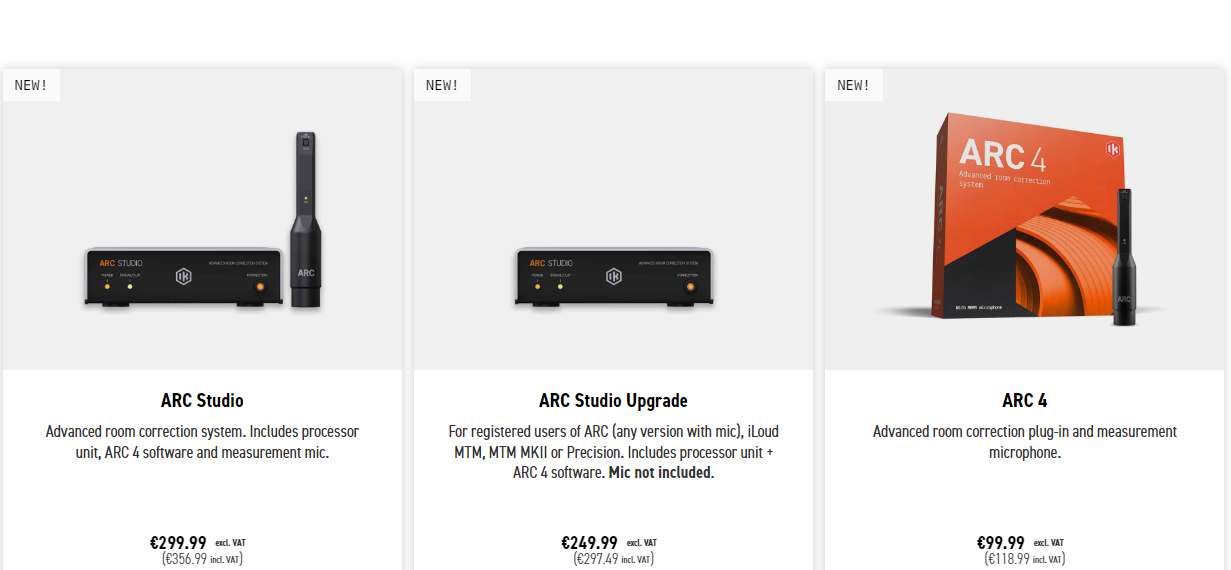

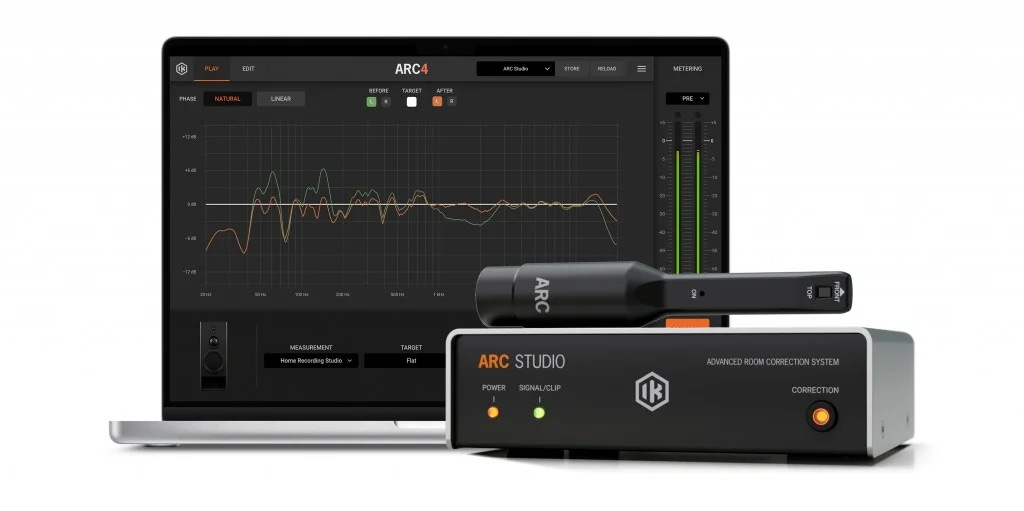

IK Multimedia ARC System 3
ARC Studio, developed by IK Multimedia, positions itself as a professional-grade room correction system that's also accessible to prosumers. It's a relatively newer entrant compared to the other ones but has quickly gained recognition. ARC is available in different versions. ARC Studio includes a standalone correction processor, new ARC 4 measurement and room correction software, and a room analysis microphone.
Key features:
Affordable hardware processor or Plugin for Room Correction
Balances ease of use with professional-grade features
Uses a proprietary room analysis microphone for measurements
Offers both frequency and time-domain correction
Supports multi-subwoofer setups
Real-time adjustment capabilities
Monitor emulation function for iconic studio monitors, popular hi-fi speakers and mobile device
One-time purchase pricing model
Integrates well with other IK Multimedia products
ARC Studio is often praised for its balance of features, It's trendy among music producers and mixing engineers who want a comprehensive solution without overwhelming complexity.
Cons:
- Can be CPU-intensive
- Some users report latency issues
My take: ARC System 3 is great for beginners and pros. Its virtual monitoring feature lets you simulate different listening environments, which is super helpful for checking your mix translation.

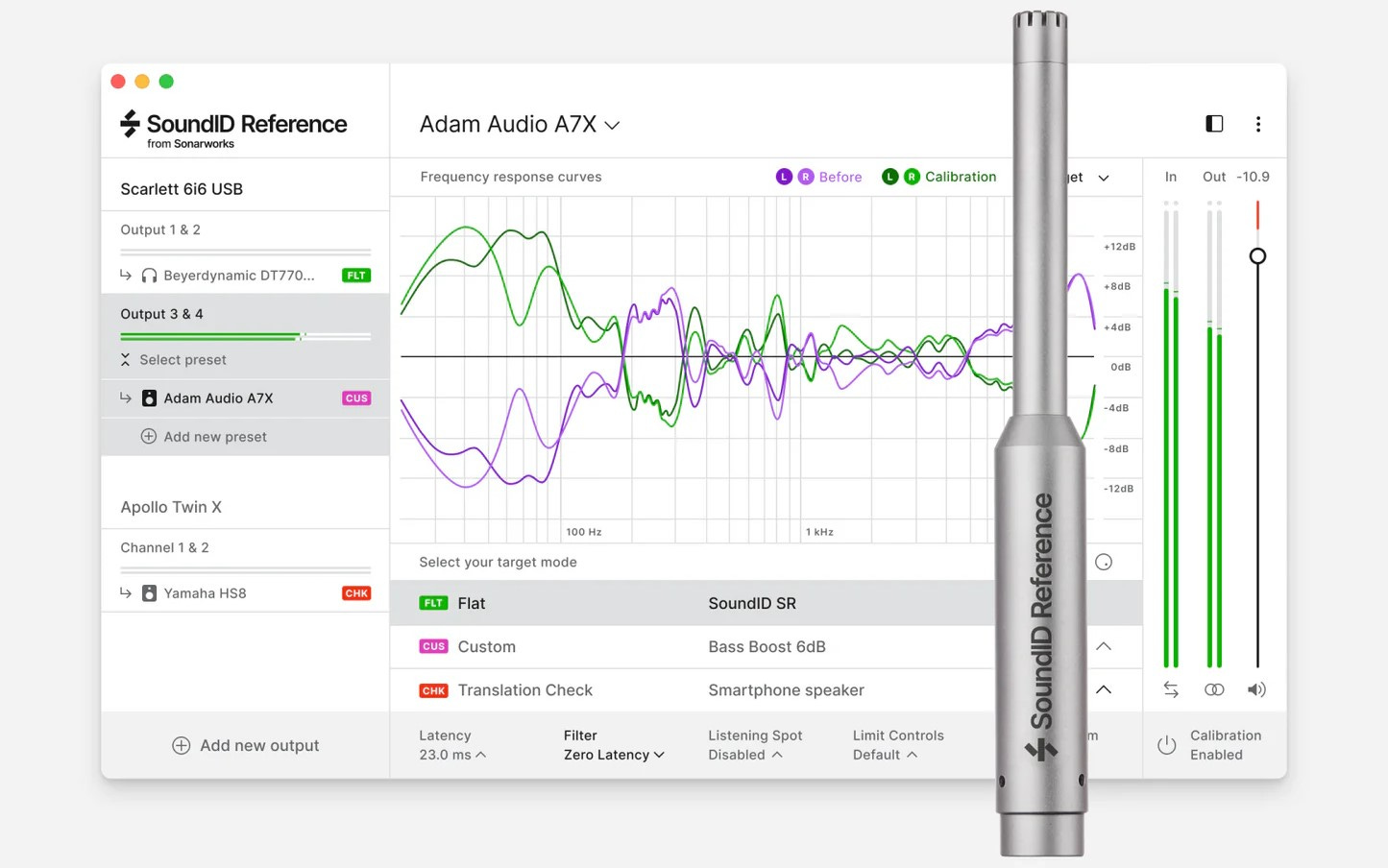

Sonarworks Sound ID Reference
Sound ID Reference, developed by Sonarworks, is renowned for its high-quality room, speaker, and headphone calibration. It serves both professional studios and home users, providing a simple solution for enhancing audio precision.
Key features:
Easy-to-use interface with a focus on simplicity
Available as a plugin for DAWs and as a standalone application
Accurate speaker measurements and calibration for stereo or multichannel setups.
Headphone correction for Over 500+ supported headphone models.
Offers a wide range of predefined target curves and custom options
Works with their proprietary microphone or supported third-party options

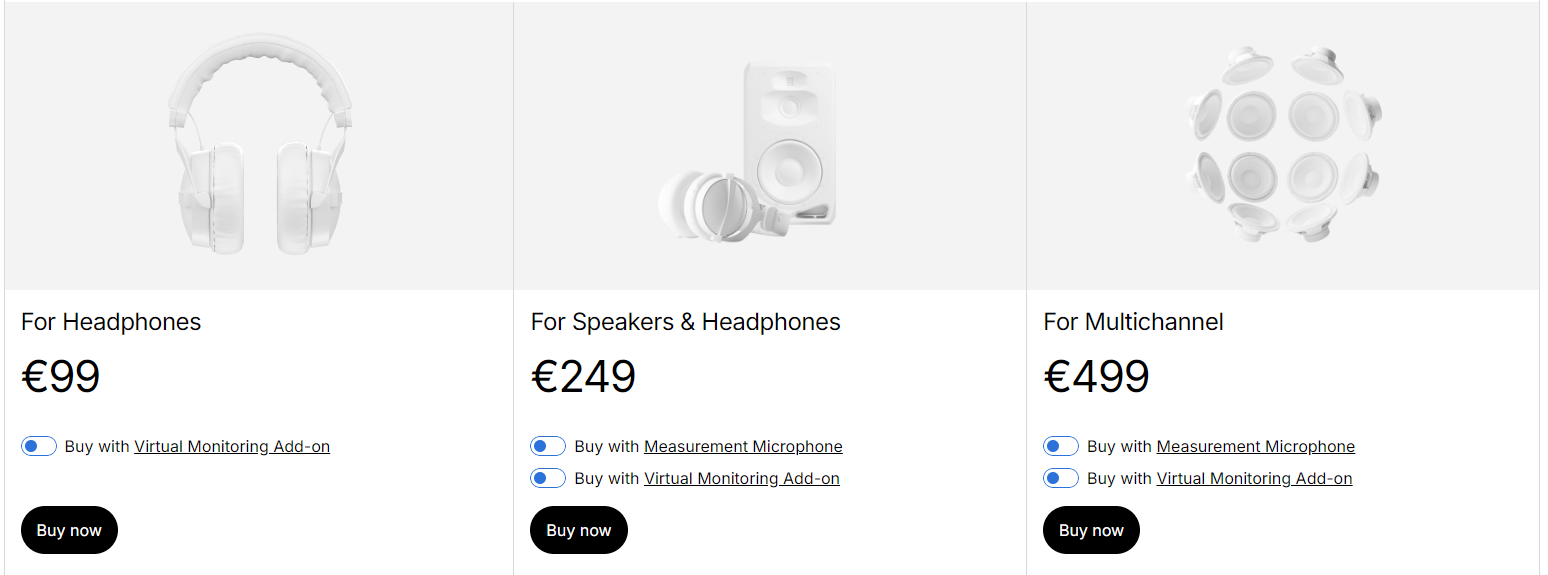

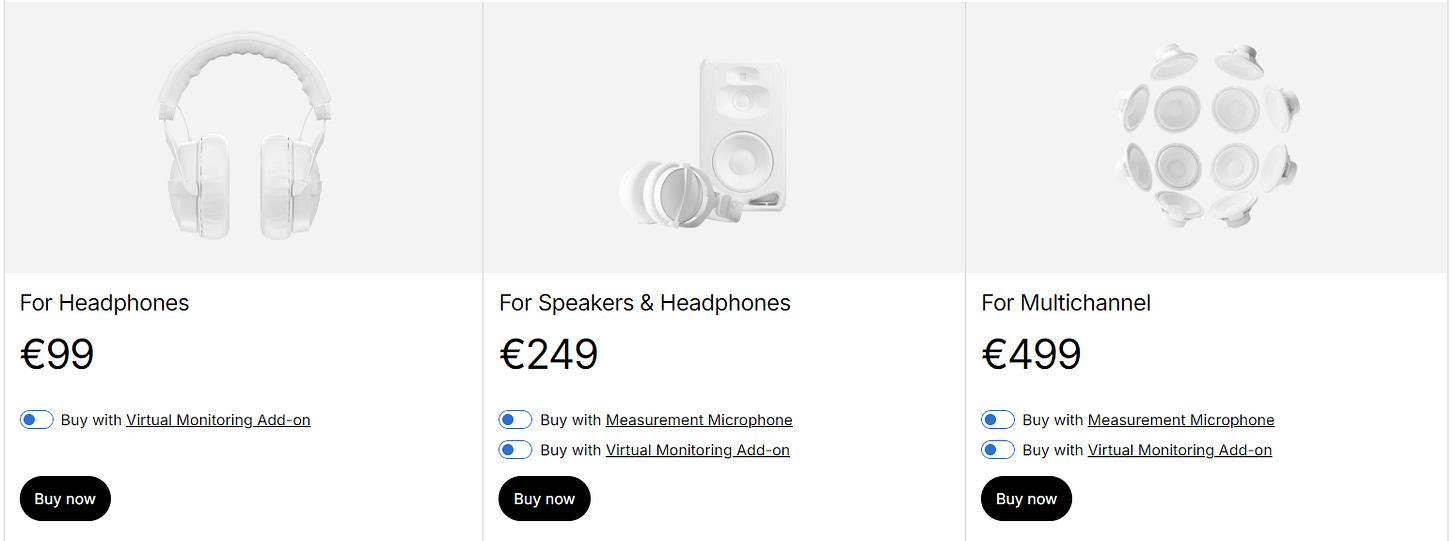

There are 3 different Pricing models. Headphones, Speakers and Headphones or Multichannel
Sound ID Reference is particularly popular among project studio owners and audio enthusiasts who want a quick and effective solution without diving deep into complex acoustics.
Cons:
-Preset Focus: users who want precise control over their room correction profiles might find the customization options somewhat restricted compared to those offered by some competitors.
My experience: Sonarworks has become my go-to solution. The results are consistently impressive, and I love how it integrates with my Studio Monitors.

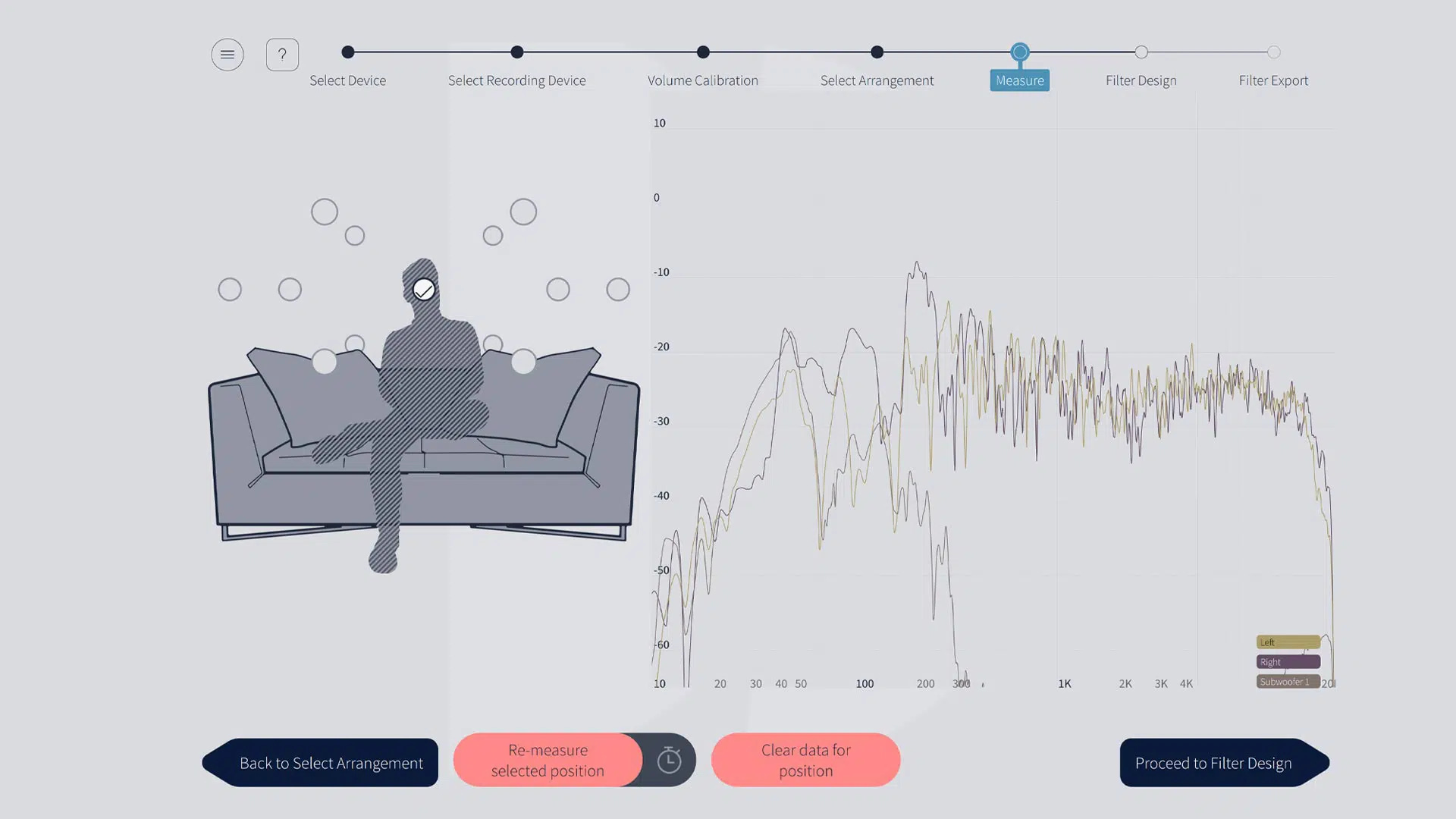

Dirac Live
Dirac Live, created by Dirac Research, is a more advanced and comprehensive room correction solution. It's widely regarded in both home audio and professional circles for its sophisticated approach to audio calibration.
Key features:
Advanced algorithms for both frequency and time-domain correction
Supports multi-subwoofer setups for enhanced bass management
Offers virtual speaker placement to optimize soundstage
Wide integration with various hardware receivers and processors
Extensive manual adjustment options for professionals
Uses proprietary microphone or supported third-party options

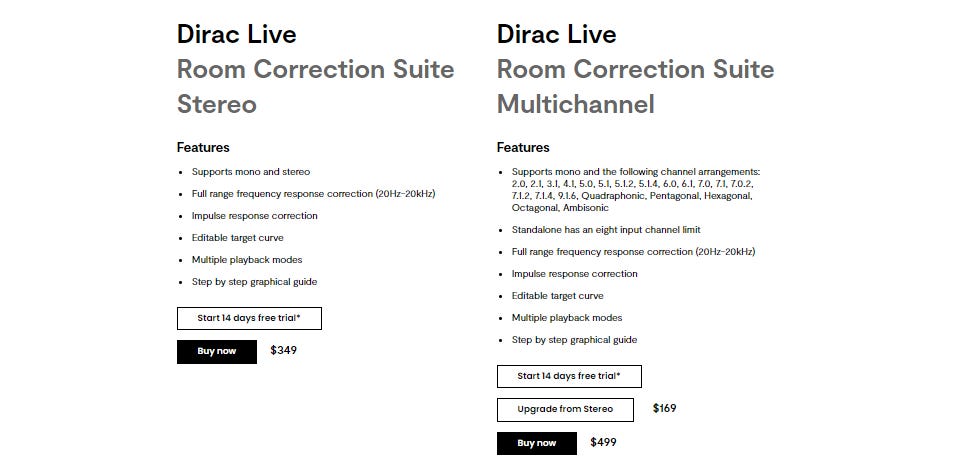

Tiered pricing model with different feature sets
Dirac Live is a popular choice for audiophiles and professionals who seek extensive control over their room correction and are willing to invest time in learning a more complex system. Its integration with many high-end audio brands makes it a preferred option for home theater enthusiasts.
Cons:
- The setup process may have a steep learning curve and can be more complex.
- The default target curve might not always be ideal for everyone's listening preferences, requiring manual adjustments.
My thoughts: Dirac Live is the heavy-hitter of the bunch. If you're serious about room correction and don't mind a bit of complexity, it's worth considering. The time-domain correction is remarkable for spatial accuracy.

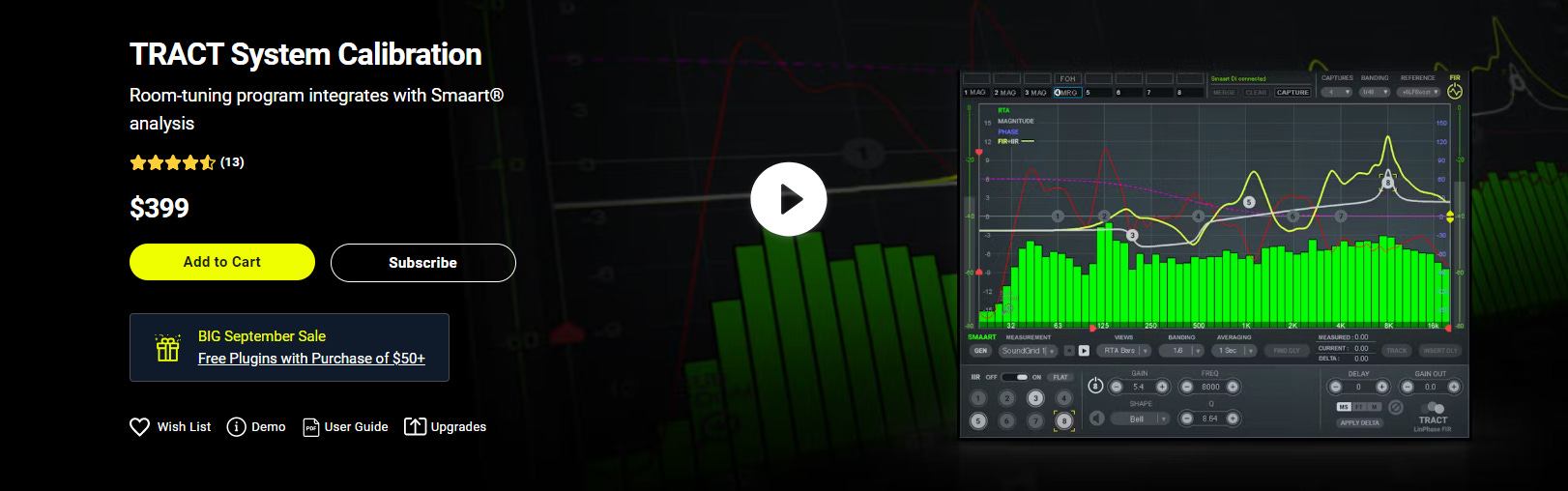

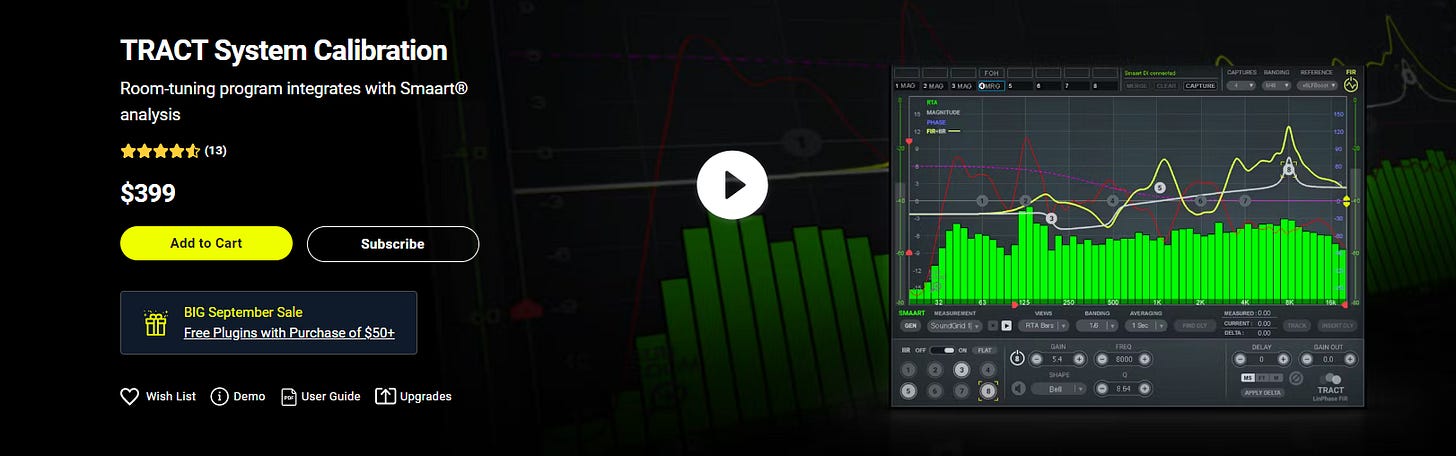

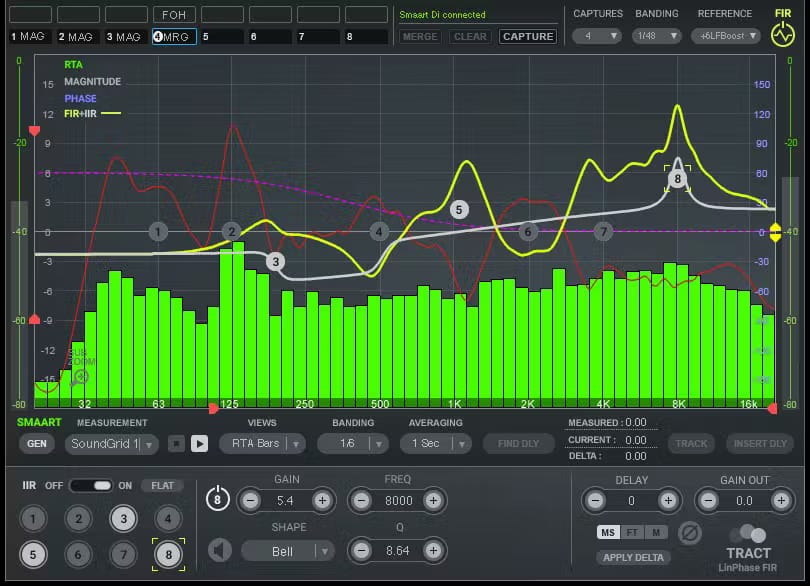

Waves TRACT
Waves TRACT (Tracks Room Acoustics Correction Technology) is a high-quality room correction system created by Waves Audio. It can also be used for PA and Live Sound. TRACT works in conjunction with the widely used Smaart® audio analysis software to identify room issues and then effectively address them.
Key features:
Use in live events or in the studio for monitor correction
Uses proprietary TRACT algorithm for phase and frequency correction
Unlike most room tuning systems, which create a single “sweet spot,” TRACT can capture up to 8 response snapshots and merge them into a single correction curve.
Supports multi-speaker setups
Real-time processing with low latency
Requires Waves SoundGrid hardware for measurement and processing
Waves TRACT is primarily aimed at professional studios and live venues.
Cons:
- Cost: TRACT can be relatively expensive,
- Complexity: makes it challenging for beginners to navigate and understand fully.
I believe that TRACT is a powerful tool, especially if you are already part of the Waves plugin ecosystem. It improves the sound quality of your audio system. Its seamless integration with Smaart, automated functions, and accuracy make it a valuable tool for audio engineers and technicians.

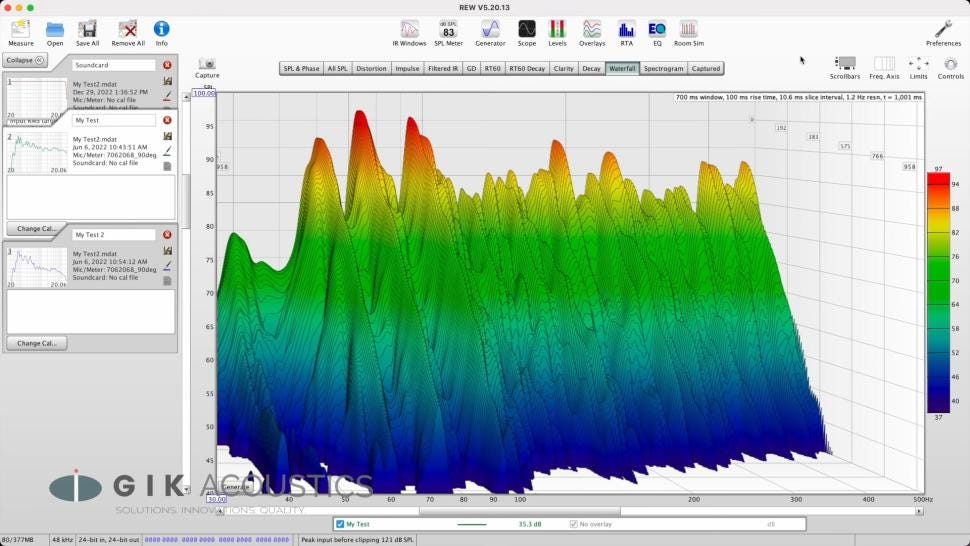

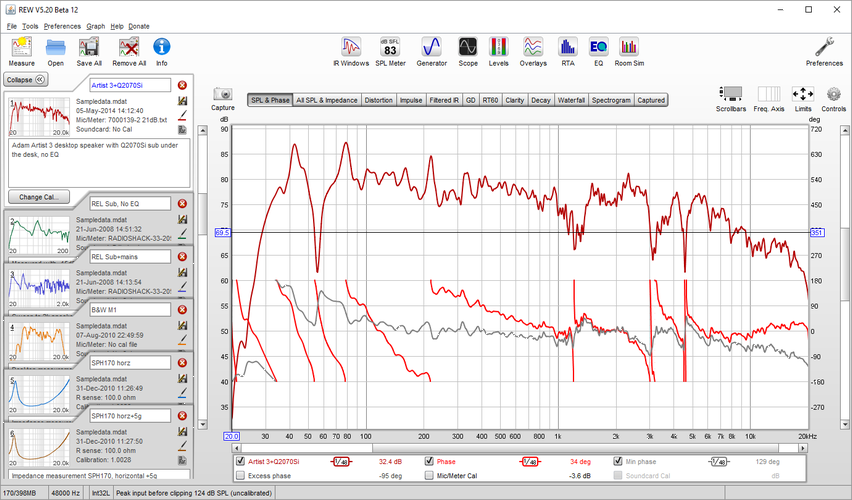

Room EQ Wizard (REW)
Room EQ Wizard, also known as REW, is a free, open-source software for analyzing speakers and equalizing room acoustics. It is often used by individuals who construct their loudspeakers and is popular among audio enthusiasts and professionals.
Key features:
Comprehensive measurement and analysis tools
Free and open-source
Supports a wide range of measurement microphones
Powerful EQ generation tools
Extensive graphing and reporting capabilities
Incredibly powerful Speaker measurement and analysis tools
Supports a wide range of hardware
A steep learning curve, but extensive documentation available
REW is known for its depth of features and flexibility. It's often used in conjunction with other tools and hardware equalizers to implement room correction.
Cons:
- Doesn't provide automatic correction: Some tasks in REW, such as generating EQ curves or applying corrections, may require more manual steps.
- Steep learning curve
My verdict: REW is the Swiss Army knife for room analysis and studio monitor measurements. It's not a plug-and-play solution like the others, but it's invaluable for understanding your room's acoustics. I use it alongside other correction software for deeper insights.
How Room Correction Transformed My Workflow
I am feeling more confident in my decisions.
With a flatter response, I can trust what I'm hearing. I no longer have to second-guess every EQ move or constantly reference different systems.
Faster Mixing
I spend less time fighting my room and more time being creative. My initial balances come together quickly, and I catch problems earlier in the process.
Improved Translation
I now have confidence in my mixes and masters, as they translate well to other systems. What I hear in my studio is much closer to a perfect sound experience.
Less Fatigue
I can work longer sessions without ear fatigue. The reduced resonances and smoother response are much easier on my ears.
Better Low-End Control
I've finally got those tricky low frequencies under control. My bass-heavy tracks have improved a lot.
Getting Started with Room Correction
1. Measure Your Room
Use software like REW to analyze your current acoustic situation. This will give you a baseline and help you identify problem areas.
2. Acoustic Treatment
While software can do wonders, physical treatment will enhance its effectiveness. To tame the worst reflections, add bass traps and absorption panels to your studio.
3. Choose Your Software
Select a room correction solution based on your needs and budget. Many offer free trials, so experiment to find the best fit.
4. Calibrate Carefully
Follow the calibration process meticulously. Take multiple measurements and average them for the best results.
5. Trust the Process
It might sound strange at first. Give yourself time to adjust to the corrected Sound. After a while, you'll wonder how you ever mixed without it.
6. Combine with Traditional Techniques
Use it alongside proper acoustic optimization, referencing, and correct monitor placement methods for the best results.
PS: I'm grateful for the tools we have. They've allowed me to create better mixes. If you're struggling with room-related mixing issues, I can't recommend room correction software enough. It could genuinely transform your productions as it did for me some years ago.
Cheers Marcus
